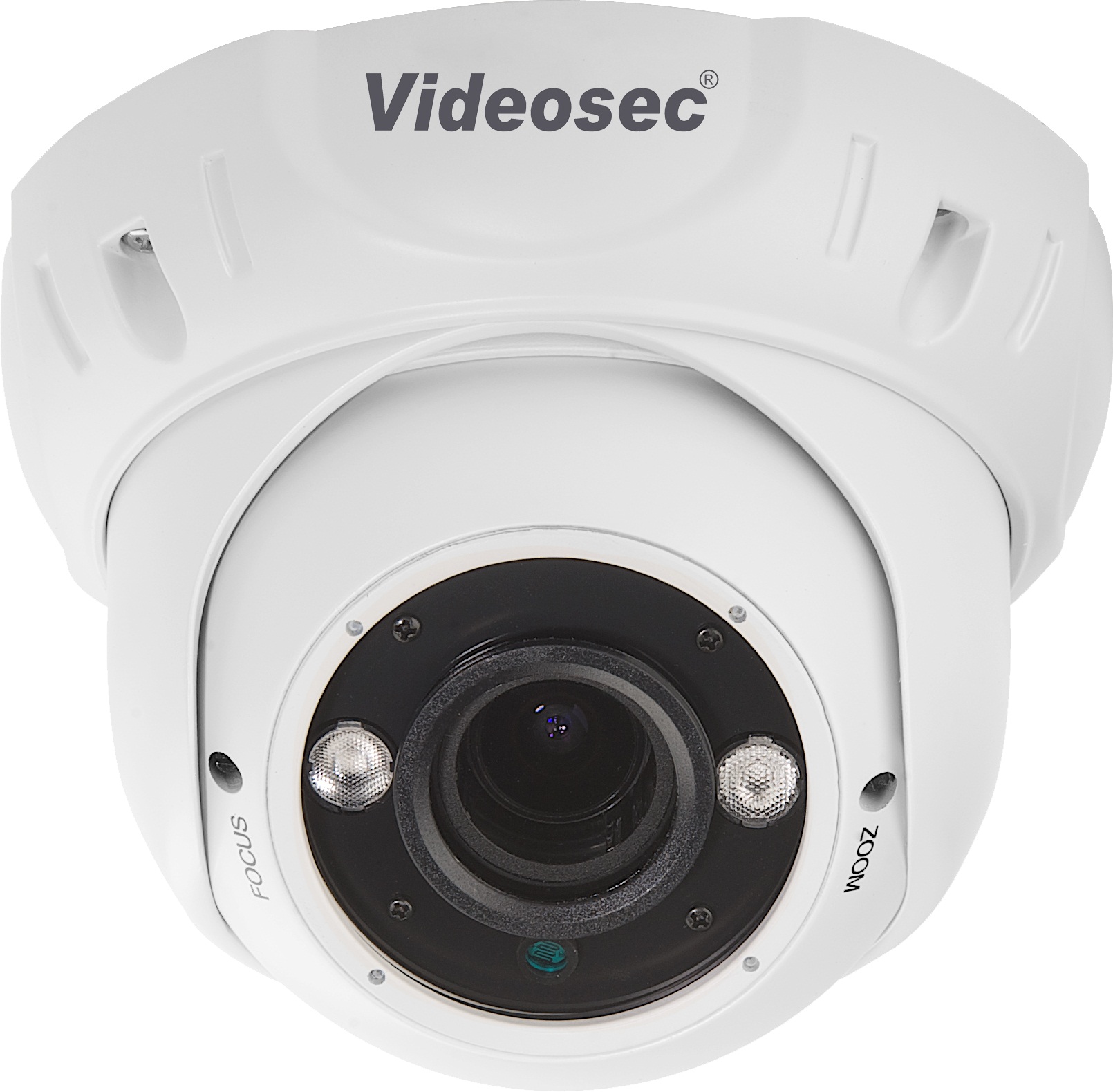

XDV-236PZ

• 4 in 1 – 1Ch CVBS/AHD/HDCVI/HDTVI selectable output
• Day/night functionality
• 3D DNR (Digital Noise Reduction)
• Over 250m via high quality coaxial cable @1080p
• Chipset: Panasonic MN34227 + NVP2441
• Motorized varifocal lens – 2.8 – 12mm
• IR distance: 20~35m
• Output adjustable by OSD Joystick (non-removable Zooming function)
• Control Over Coax OSD & Zoom
• Flicker Filter, Mirror Image, DeFog, 2D+3DNR
• Option accessories: Video Balun HDT-1080
• Option accessories: J-BOX-140 Junction Box
• Wide temperature range: -30°C to 60°C
• IP66
• Push OSD button Up/Down to Zoom +/- (Semi AF focuses on release)
• Press and hold the OSD button to cycle AHD/TVI/CVI/CVBS modes
• Main Menu, Exposure, -> x3, Enter, <- x1, Enter, Apply
• Switch PAL/NTSC inside OSD menu
